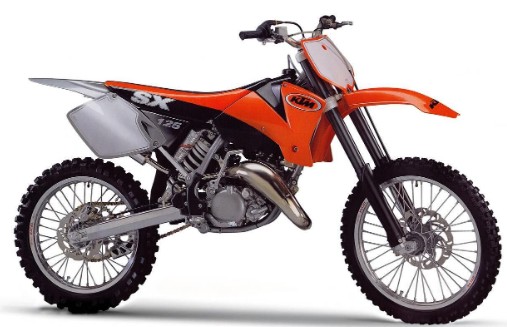

2001 KTM 125SX

2001 KTM 125 SX: The Year KTM Reworked Its Small-Bore Motocrosser

The 2001 KTM 125 SX was much more than a routine colour-and-graphics update. KTM substantially reworked its 125 motocrosser for the new model year, with contemporary tests describing almost everything apart from the basic fork, shock and carburettor as new, redesigned or refined. The changes arrived at an important point in KTM history, when the Austrian manufacturer was becoming a serious threat to the established Japanese 125 motocross machines rather than simply an alternative choice on the start gate. Owners comparing different years can use the MXOwners bike specifications database to see how quickly the 125 SX continued to evolve through this period.

The biggest mechanical change was inside the engine. Earlier KTM 125s used a 54.25 mm bore and 54.0 mm stroke, but for 2001 KTM adopted a 54.0 x 54.5 mm layout, giving 124.8 cc. The revised engine received a new cylinder, piston and lighter crankshaft. KTM's goal was not simply peak horsepower. The previous model had already developed a reputation for being extremely fast when ridden hard, but it demanded commitment and accurate gear selection. The 2001 engine was intended to retain the strong midrange and top-end character while making the power easier to use when the rider dropped below the ideal rpm.

Fuel delivery remained deliberately simple. KTM stayed with a large Keihin PWK 39 mm flat-slide carburettor rather than adopting some of the more complicated carburettor electronics beginning to appear elsewhere. For owners restoring or tuning one today, understanding the condition of the original carb, slide, needle and jets is particularly important on a highly tuned 125. The MXOwners carburettor replacement and reference guide is useful when the original unit is worn, damaged or missing. The engine was fed premixed fuel, with KTM specifying high-quality two-stroke oil at ratios between 1:40 and 1:60 depending on oil and operating conditions. The two-stroke premix calculator makes it easier to calculate accurate fuel and oil quantities.

The chassis retained KTM's chrome-molybdenum steel central frame and the distinctive no-linkage WP PDS rear suspension, but the riding position was extensively modernised. A redesigned fuel tank, new radiator shrouds, flatter seat profile and revised bodywork allowed the rider to move forward and rearward more easily. Contemporary testers noted that this was a major improvement over the older KTM layout, which had felt more like an enduro machine adapted for motocross. Oversize Magura handlebars and the flatter seat-to-tank junction helped give the 2001 machine a much more purposeful motocross feel.

Suspension consisted of a 43 mm White Power upside-down fork with 295 mm of wheel travel and a WP PDS shock providing 320 mm at the rear. Standard fork specification used SAE 5 oil, with the 125 SX setting using a 130 mm air chamber. Because fork condition and oil level have a major effect on an older motocross bike, the MXOwners fork oil reference is useful when servicing or returning a modified fork to a known baseline. Braking was handled by 260 mm front and 220 mm rear discs, while the 21-inch front and 19-inch rear wheels carried competition-oriented motocross tyres.

At about 92 kg dry, the 125 SX was exceptionally light, and its combination of strong high-rpm performance, hydraulic clutch and sharp motocross chassis helped establish KTM as a genuine force in the 125 class. The model also gained considerable visibility through KTM's international racing programme, with riders such as Grant Langston demonstrating that the orange machines could compete at the highest level. For today's owner, the 2001 model is historically significant because it represents one of the moments when KTM stopped merely chasing the Japanese manufacturers and began developing the ideas, engineering and identity that would eventually make its two-stroke motocross range a benchmark of the class.
