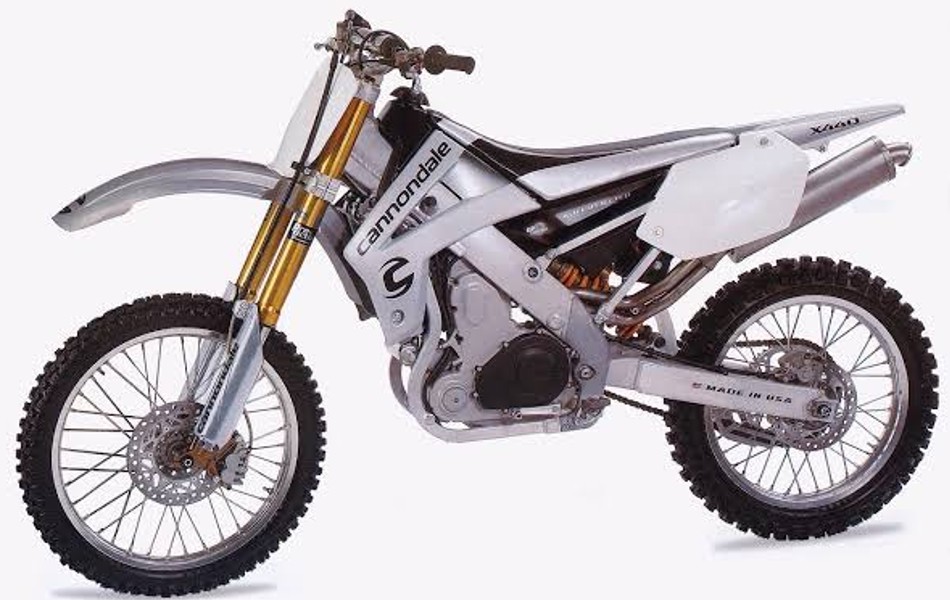

2002 Cannondale X440

2002 Cannondale X440 – America's Ambitious Fuel-Injected Motocross Experiment

The 2002 Cannondale X440 occupies a fascinating and sometimes controversial place in motocross history. Developed by the American bicycle manufacturer Cannondale, the X440 followed the company's original MX400 programme and represented an ambitious attempt to challenge the established Japanese and European motocross manufacturers. With electronic fuel injection, an aluminium frame, electric starting and an unconventional engine layout, Cannondale introduced technologies and design ideas that were unusual among production motocross motorcycles at the beginning of the 2000s.

The X440 was more than a simple name change from the earlier MX400. Cannondale continued developing its motorcycle after criticism of the original machine's reliability, weight and engine performance. The 2002 model retained the distinctive 432cc four-stroke engine with a 95 mm bore, 61 mm stroke and 12.5:1 compression ratio. Its four-valve cylinder head used dual overhead camshafts, while electronic fuel injection was controlled by Cannondale's MC1000 engine-management system. An 11,600 rpm soft rev limiter and electronic ignition reflected the manufacturer's emphasis on technology.

One of the most unusual engineering features was the engine's rearward cylinder-head arrangement, with intake air entering from the front and exhaust gases exiting towards the rear. This layout differed from conventional motocross engines and influenced the positioning of the air intake, exhaust system and other components. Cannondale also designed the motorcycle around an aluminium twin-spar frame and a removable five-speed cassette gearbox. The ability to remove transmission components without completely dismantling the engine was an innovative feature for a production motocross machine.

Electronic fuel injection was another notable departure from established practice. Most contemporary motocross motorcycles still relied on carburettors, requiring changes to jets and needle settings when riding conditions varied. Cannondale's electronically controlled system offered the possibility of more consistent fuel delivery but also introduced additional complexity. Sensors, fuel pumps, wiring and engine-management electronics became important maintenance considerations. Today, owners restoring an X440 may find these components among the more challenging parts to repair or replace. The MXOwners motorcycle parts finder provides a starting point for researching replacement components.

Suspension equipment reflected Cannondale's attempt to compete with established premium motocross brands. The X440 used 46 mm Ohlins upside-down front forks with 12 inches of travel and adjustable compression and rebound damping. At the rear, an Ohlins linkless monoshock provided approximately 12.6 inches of wheel travel. Unlike conventional linkage-operated motocross suspension systems, the rear shock relied on its internal position-sensitive damping characteristics to manage suspension movement. Owners investigating setup and maintenance can consult the MXOwners rear suspension setup guide for general information about suspension adjustment.

The X440 also featured a distinctive lubrication arrangement. The engine used a dry-sump oil system, while the cassette gearbox had its own separate lubricant supply. Cannondale specified SAE 10W-40 synthetic engine oil and SAE 80W or 85W non-hypoid transmission oil. This separation is important for modern owners because using incorrect gearbox lubricant can cause expensive mechanical problems. The original owner's manual also specifies NGK CR9EK spark plugs, Ohlins SAE 5W fork oil and mineral hydraulic oil for the clutch system.

Despite its innovative design, the X440 struggled to establish itself against proven competitors. Cannondale invested heavily in developing its motorcycle and ATV programmes, but persistent reliability concerns, high development costs and limited commercial success placed enormous pressure on the company. Cannondale entered bankruptcy proceedings in early 2003, bringing its original motorcycle manufacturing venture to an end. The motorcycles subsequently became sought-after curiosities among enthusiasts interested in unusual American off-road engineering.

Today, the 2002 X440 remains a remarkable example of ambitious motorcycle development. Although it never achieved the commercial success Cannondale hoped for, its electronic fuel injection, aluminium chassis, cassette transmission and unconventional engine layout demonstrated a willingness to challenge established motocross design. Surviving examples require knowledgeable maintenance and careful attention to original specifications, but they represent an important chapter in the history of American motocross engineering.
