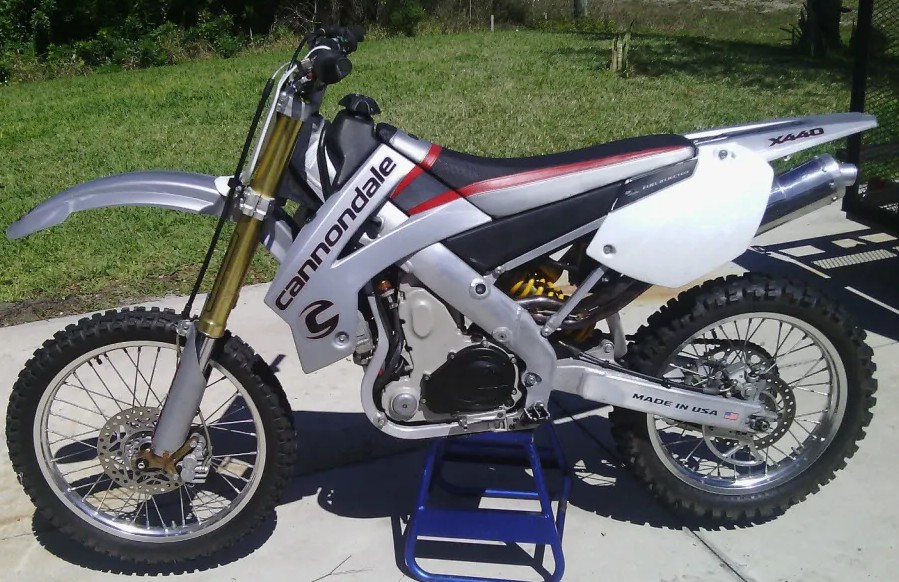

2003 Cannondale X440 – The Final Chapter of America's Ambitious Motocross Experiment

The 2003 Cannondale X440 represents the final chapter in one of the most ambitious and controversial motorcycle projects in American motocross history. Developed by Cannondale, the Pennsylvania-based company best known for its aluminium bicycles, the X440 combined advanced technology with unconventional engineering. Electronic fuel injection, electric starting, a removable cassette gearbox and premium Ohlins suspension made it remarkably different from many established motocross motorcycles of the early 2000s. Unfortunately, its technical ambition was accompanied by serious development and reliability challenges.

Cannondale originally entered motorcycle development during the late 1990s, aiming to compete with established Japanese and European manufacturers. The company's first production motocross machine appeared as the MX400, despite having a displacement of approximately 432cc. Its development attracted enormous publicity, including early recognition from Dirt Rider magazine before the motorcycle reached customers. The machine was subsequently renamed X440 for 2002, with Cannondale continuing to introduce improvements as it attempted to address weaknesses discovered during testing and racing.

For 2003, the X440 remained substantially based on the preceding model rather than introducing an entirely new generation. Its 432cc liquid-cooled four-stroke engine retained a 95 mm bore, 61 mm stroke, dual overhead camshafts and four-valve cylinder head. A 12.5:1 compression ratio reflected its competition-oriented design. Electronic fuel injection was controlled by Cannondale's MC1000 ECU, which also managed electronic ignition and incorporated an 11,600 rpm soft rev limiter. These features were unusual in production motocross motorcycles at the time, when carburettors remained standard equipment across much of the industry.

The engine layout was particularly unconventional. Cannondale reversed the usual intake and exhaust arrangement, positioning the intake towards the front of the motorcycle and routing the exhaust towards the rear. This approach influenced the motorcycle's chassis packaging, airbox arrangement and servicing requirements. A removable five-speed cassette gearbox was another unusual feature, allowing transmission components to be accessed without completely dismantling the engine. Electric starting was standard, eliminating the conventional kick-start procedure but introducing additional electrical and battery requirements.

The X440's aluminium twin-spar perimeter frame reflected Cannondale's extensive experience with aluminium bicycle construction. Premium suspension equipment included 46 mm Ohlins upside-down forks providing approximately 305 mm of travel and a linkless Ohlins rear shock delivering approximately 320 mm of rear wheel movement. The rear suspension used position-sensitive damping rather than a conventional rising-rate linkage arrangement. This unusual configuration was part of Cannondale's effort to introduce new engineering approaches, although suspension performance and handling attracted mixed responses from contemporary motorcycle testers.

Owners maintaining an X440 must pay particular attention to its separate lubrication systems. Unlike many conventional four-stroke motocross engines, the Cannondale uses independent engine and transmission oil supplies. The engine requires suitable SAE 10W-40 synthetic oil, while the transmission uses SAE 80W or 85W non-hypoid gear oil. The hydraulic clutch also requires a specific mineral hydraulic fluid. Confusing these lubricants can cause mechanical damage. The factory specifies NGK CR9EK spark plugs, with a 0.6-0.7 mm electrode gap, and SAE 5W Ohlins fork oil. The MXOwners fork oil and suspension reference guide provides additional general information about suspension servicing.

Despite continued development, Cannondale struggled to overcome the financial and engineering difficulties associated with its motorcycle and ATV programmes. The company invested enormous sums in developing the machines, but persistent reliability concerns, expensive production and disappointing commercial results contributed to its financial collapse. Cannondale entered bankruptcy proceedings in 2003, ending its original motorcycle manufacturing programme. By that point, improvements had been made to the X440, but the motorcycle had not achieved the commercial success necessary to sustain the project.

Surviving 2003 X440 motorcycles are now unusual examples of American motocross engineering. Their rarity makes restoration challenging, particularly when sourcing engine-management components, fuel-system parts, electrical equipment and original engine components. Owners can investigate replacement options using the MXOwners motorcycle parts finder and should retain copies of the original factory documentation wherever possible. The 2003 X440 is remembered less for racing success than for its unusual design, technical ambition and its place in the history of innovative but commercially unsuccessful motorcycles.
