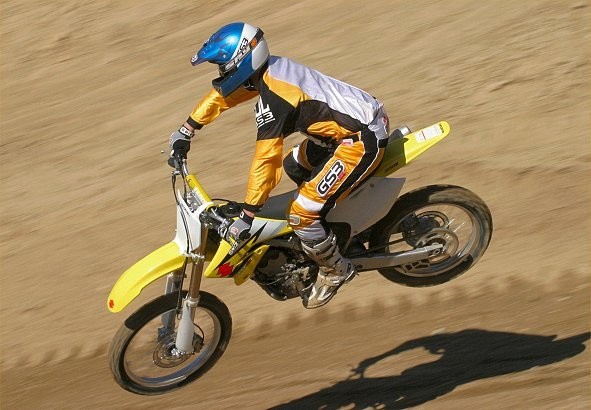

2004 Suzuki RM-Z250

2004 Suzuki RM-Z250 – Suzuki Enters the 250 Four-Stroke Era

The 2004 Suzuki RM-Z250 was a major new model and the first RM-Z250 in Suzuki's motocross range. Developed during Suzuki's technical cooperation with Kawasaki, it shared much of its basic engineering with the first Kawasaki KX250F but wore Suzuki styling and began a new four-stroke branch of the long-running RM family.

At its centre was a new 249 cc liquid-cooled DOHC four-stroke engine using a 77.0 mm bore and 53.6 mm stroke. The short-stroke design, four-valve cylinder head and 12.6:1 compression ratio were aimed at the high engine speeds needed to make competitive power in the emerging 250 four-stroke motocross class. This was a very different proposition from Suzuki's RM250 two-stroke, which continued to be sold alongside it.

Fuel was supplied by a 37 mm Keihin FCR flat-slide carburettor. The FCR was standard equipment on many early high-performance four-strokes and offered excellent response when correctly set up, but jetting, accelerator-pump operation and fuel-screw adjustment could have a major effect on starting and throttle response. Owners repairing incomplete bikes can compare replacement carburettor options when the original unit is worn or missing.

The 2004 RM-Z250 used a steel perimeter-style chassis rather than the aluminium frames that would become common on later four-stroke motocross bikes. The chassis had to package a taller and more mechanically complex four-stroke engine while still allowing the rider to move freely around the motorcycle. A 21-inch front wheel and 19-inch rear wheel maintained conventional full-size motocross dimensions, and owners can check replacement fitments with the MXOwners tyre size guide.

Long-travel cartridge forks and a linkage-type rear shock gave the RM-Z250 competition-level suspension adjustment. Fork oil condition, spring rate and damping setup make a noticeable difference to these early four-strokes because they carried their weight differently from the two-strokes many riders were accustomed to. The MXOwners fork oil reference can help when working through front-suspension servicing.

Maintenance was also a major change for riders moving from an RM two-stroke. There was no premix oil to measure, but the highly tuned four-stroke required frequent engine-oil changes, careful air-filter servicing and regular valve-clearance inspection. The engine and transmission shared their lubricant, so keeping clean, correctly specified oil in the machine was particularly important.

The first-generation RM-Z250 is historically significant because it marks Suzuki's entry into a class that would soon become dominated by four-strokes. It did not immediately replace Suzuki's two-stroke motocross bikes; instead it gave racers another choice as the sport moved toward high-revving four-stroke engines. Owners restoring an early example can use the MXOwners Parts Finder when checking replacement components and model-year compatibility.

Although later RM-Z250 generations became lighter, more sophisticated and eventually fuel injected, the 2004 model established the name and the basic concept. It represents the beginning of Suzuki's modern 250 four-stroke motocross line and an important transition point between the traditional two-stroke RM era and the RM-Z machines that followed.
