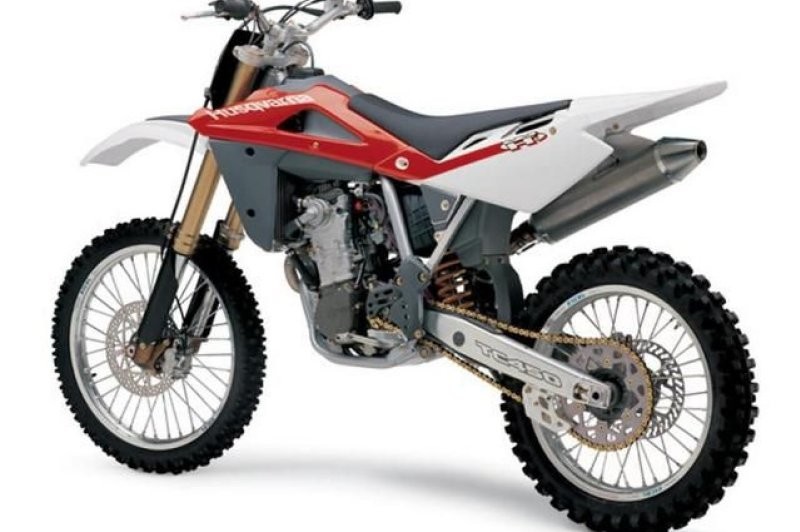

2005 Husqvarna TC450
General Specifications
| Model | Husqvarna TC450 |
| Year | 2005 |
| Category | Motocross |
| Engine Type | Single-cylinder, liquid-cooled, 4-stroke, DOHC, 4-valve |
| Weight | 104.8 kg dry |
Engine
| Displacement | 449 cc |
| Bore x Stroke | 97.0 x 60.8 mm |
| Compression Ratio | 12.0:1 |
| Fuel System | Mikuni TMR 41 mm flat-slide carburettor | Replacement Options |
| Ignition | Digital electronic CDI with variable advance |
| Spark Plug | NGK CR8EB |
| Spark Plug Gap | 0.6-0.7 mm |
| Cooling System | Liquid cooled with water-pump circulation and twin radiators |
| Starting System | Kick starter with automatic decompressor |
Transmission
| Transmission | 5-speed constant-mesh manual |
| Clutch | Wet multi-plate, hydraulically operated |
| Final Drive | 520 chain; 14-tooth front / 50-tooth rear sprockets |
Dimensions
| Overall Length | 2175 mm |
| Overall Width | 820 mm |
| Overall Height | 1280 mm |
| Wheelbase | 1475 mm |
| Ground Clearance | 340 mm |
| Seat Height | Approximately 975 mm |
| Fuel Capacity | 7.7 L |
Chassis
| Frame | High-strength steel single-beam frame with light-alloy rear subframe |
| Front Tyre | 80/100-21 Pirelli MT32 | Tyre Size Guide |
| Rear Tyre | 110/90-19 Pirelli MT32 | Tyre Size Guide |
Suspension
| Front Suspension | 45 mm Marzocchi Shiver upside-down hydraulic fork, adjustable for compression and rebound damping | Fork Oil Levels |
| Front Suspension Travel | 300 mm |
| Rear Suspension | Sachs hydraulic monoshock with Progressive Soft Damp linkage, adjustable for spring preload, compression and rebound damping |
| Rear Suspension Travel | 320 mm |
| Fork Oil | SAE 7.5 fork oil; set oil level to the factory specification for the fitted 45 mm Marzocchi Shiver fork |
Brakes & Wheels
| Front Brake | 260 mm hydraulic single disc with floating 2-piston caliper |
| Rear Brake | 220 mm hydraulic single disc with floating caliper |
| Front Wheel Size | 1.60 x 21 in light-alloy rim |
| Rear Wheel Size | 2.15 x 19 in light-alloy rim |
Service Data
| Fuel Type | Premium unleaded petrol |
| Premix Information | Not applicable - 4-stroke engine |
| Gearbox Oil | Engine, gearbox and primary drive share SAE 10W-60 motorcycle oil; approximately 1.4 L with oil filter replacement |
| Air Filter | Oiled foam air filter |
| Service Notes | Competition motocross model. Change engine oil and filter at short competition intervals, clean and re-oil the air filter frequently and regularly inspect valve clearances, cam-chain condition, cooling system, hydraulic clutch, drive chain, wheel bearings, steering-head bearings and suspension linkage. |
2005 Husqvarna TC450 – Refining the Italian 450 Four-Stroke
The 2005 Husqvarna TC450 was an evolutionary update rather than a new generation. It continued the compact 449cc DOHC four-stroke platform used by the preceding TC450, with Husqvarna concentrating on detail refinement rather than replacing the engine or chassis architecture. By this stage the TC450 had become the company's established answer to the rapidly developing Japanese and Austrian 450 four-stroke motocross machines.
The engine retained its 97.0 x 60.8 mm bore and stroke, 12.0:1 compression ratio and five-speed motocross gearbox. A 41 mm Mikuni TMR flat-slide carburettor handled fuel delivery, giving the large single strong throttle response when correctly adjusted. On surviving machines, worn slides, accelerator-pump components and incorrect jetting can affect starting and response, so owners can compare replacement carburettor options when rebuilding the intake system.
Suspension remained distinctly European, with a 45 mm Marzocchi Shiver inverted fork offering 300 mm of travel and a Sachs shock working through Husqvarna's Progressive Soft Damp linkage to provide 320 mm at the rear. Correct fork oil and internal condition are especially important on bikes now two decades old, and the MXOwners fork oil reference is useful during suspension servicing.
For today's owner, maintenance history is critical. Frequent oil and filter changes, clean air filtration, valve-clearance checks and inspection of the cam chain, clutch and cooling system are essential on a competition four-stroke. The 2005 TC450 was not a dramatic redesign, but it represents a mature version of Husqvarna's early modern 450 platform: powerful, relatively light for its era and unmistakably Italian in its chassis and component choices.
