2006 KTM 250SX-F

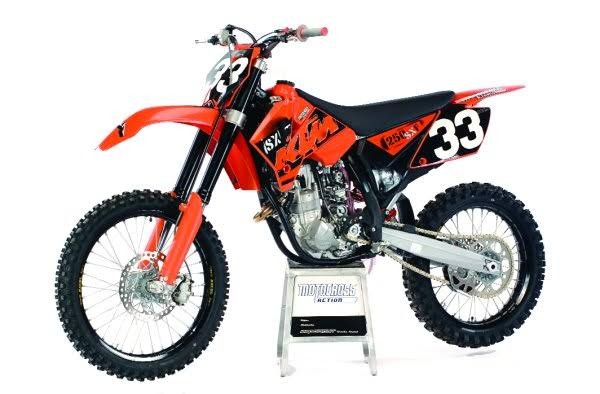

2006 KTM 250 SX-F: KTM Enters the 250 Four-Stroke Motocross Class

The 2006 KTM 250 SX-F was a major model in KTM history because it marked the arrival of the company's purpose-built 250 four-stroke motocross racer. Rather than adapting an older enduro engine, KTM developed a compact high-revving DOHC four-stroke specifically to compete in the rapidly growing 250F class. By the middle of the 2000s, 250 four-strokes had become the dominant alternative to 125 two-strokes, and KTM needed a serious machine to challenge Yamaha, Honda, Kawasaki and Suzuki.

The new engine displaced 249.5 cc from a 76.0 mm bore and 55.0 mm stroke. Its short-stroke dimensions allowed high engine speeds, while a double-overhead-cam cylinder head operated four valves. Compression was high at approximately 12.8:1, reflecting the engine's competition-only purpose. Fuel was delivered by a Keihin FCR-MX 39 mm flat-slide carburettor with an accelerator pump, a common high-performance setup of the carburetted four-stroke era. Owners restoring or replacing worn induction components can compare alternatives through the MXOwners carburettor reference.

KTM paired the engine with a five-speed transmission and its familiar hydraulically operated wet multi-disc clutch. Automatic decompression helped make kick starting manageable despite the high compression ratio. The motorcycle remained relatively light for an early 250 four-stroke, which was important because KTM was competing against machines that had already undergone several years of rapid development.

The chassis retained KTM's chrome-molybdenum steel construction rather than following the aluminium-frame direction being adopted by several Japanese manufacturers. KTM believed the steel frame provided an effective combination of rigidity, controlled flex and repairability. At the rear, the company also stayed with its distinctive linkless WP PDS suspension system instead of using a conventional rising-rate linkage.

Suspension consisted of a 48 mm WP upside-down fork with approximately 300 mm of travel and a WP PDS rear shock providing around 335 mm. These components were fully aimed at competition use, with external adjustment and considerable scope for rider-specific setup. Correct fork oil and servicing remain important on surviving machines, and the MXOwners fork oil reference is useful when checking specifications or rebuilding the original WP front end.

Braking was handled by KTM's strong hydraulic disc setup, with a 260 mm front rotor and 220 mm rear. The traditional motocross combination of a 21-inch front and 19-inch rear wheel was retained. Unlike KTM's two-strokes, the SX-F required straight premium unleaded fuel rather than premix, while the engine and transmission relied on four-stroke motorcycle oil compatible with the wet clutch.

The 250 SX-F arrived during one of the fastest periods of technological change motocross had seen. A few years earlier, 125 two-strokes had dominated the smaller professional classes; by 2006, lightweight four-strokes were rapidly replacing them. KTM's response was not simply to follow the trend but to develop a dedicated race engine and chassis package capable of becoming a long-term platform. Owners comparing KTM generations can use the MXOwners bike specifications database to follow how quickly the SX-F evolved after its introduction.

For KTM, the 2006 250 SX-F was the beginning of a hugely important model line. Later generations would gain fuel injection, electric starting, revised frames, linkage suspension and increasingly sophisticated engine management, but the basic idea began here: a compact, lightweight, high-revving 250 four-stroke designed specifically for motocross competition. That makes the first-generation 250 SX-F historically significant as the machine that established KTM in a class that would become central to modern motocross racing.
