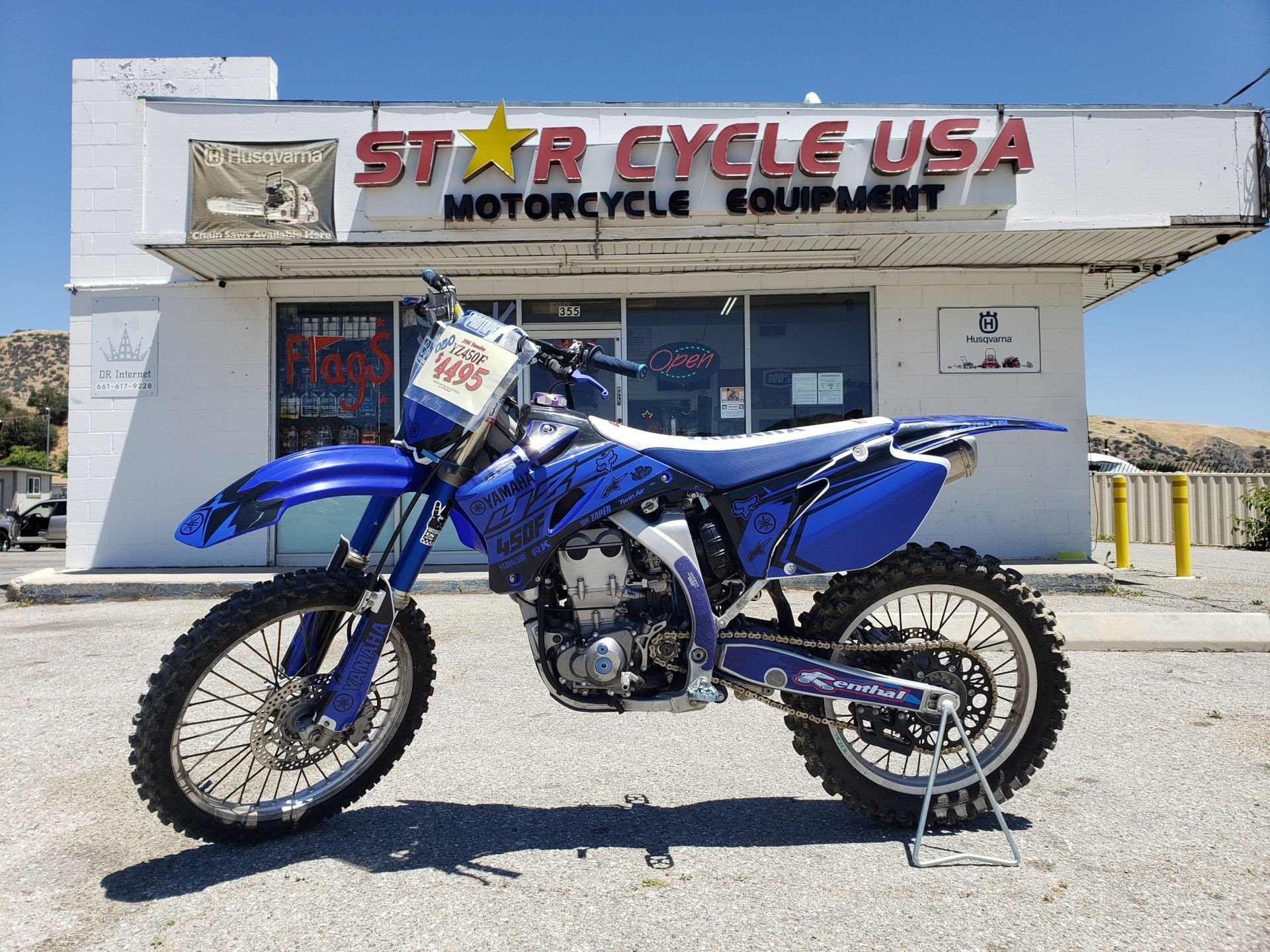

2006 Yamaha YZ250F

2006 Yamaha YZ250F: The Aluminium-Frame Generation Arrives

The 2006 Yamaha YZ250F was one of the most important revisions in the model's early history. Five years after introducing the original steel-framed YZ250F, Yamaha replaced that chassis with a completely new aluminium semi-double-cradle frame and added a major new generation of KYB suspension. The basic 249 cc five-valve engine architecture remained familiar, but the chassis changes were substantial enough to make the 2006 bike a genuine new-generation model.

Yamaha's aluminium frame was unusual compared with the broad twin-spar designs used by some rivals. The company developed a multi-piece structure built around cast, forged and extruded aluminium sections, allowing engineers to tune rigidity while reducing weight and moving mass closer to the motorcycle's centre. The result was a claimed 93.5 kg dry weight and a noticeably less top-heavy feel than the earlier steel-framed machines. Wheelbase was 1,473 mm, seat height 980 mm and ground clearance 369 mm.

The engine remained the familiar 249 cc liquid-cooled DOHC five-valve single with a 77.0 x 53.6 mm bore and stroke and 12.5:1 compression ratio. Yamaha retained the Keihin FCR-MX37 carburettor but revised ignition and carburettor settings and fitted a new stepped exhaust system aimed at improving midrange response. Owners maintaining an original FCR can compare replacement and tuning possibilities through the MXOwners carburettor reference.

Another major development was the introduction of KYB's Speed Sensitive System fork. The 48 mm inverted design placed greater emphasis on damping controlled by fork speed rather than simply fork position, providing a more compliant initial stroke while retaining resistance to bottoming under hard motocross use. Front travel remained 300 mm. Owners rebuilding these forks can refer to the MXOwners fork oil reference when checking service quantities and setup information.

The rear suspension also changed significantly. Yamaha fitted a revised Monocross system with a larger-capacity KYB shock and a lightweight titanium spring. The shock's internals were treated to reduce friction, while the revised chassis and swingarm geometry were designed to work as a complete package with the new front suspension. Correct race sag became especially important on the 2006 chassis because relatively small setup changes could noticeably affect stability and cornering balance.

Lubrication remained a pressurised dry-sump system, but oil capacity increased compared with the 2005 model. The engine and transmission share the same oil supply, with 1.15 litres required for a routine oil change, 1.25 litres when replacing the oil filter and 1.40 litres total capacity. There is therefore no separate gearbox oil compartment. Regular oil changes, clean air filtration and valve-clearance inspection remain particularly important on these high-revving competition engines.

The 2006 model was also memorable for Yamaha's 50th Anniversary Special Edition. Alongside the familiar blue version, Yamaha offered a yellow, white and black colour scheme inspired by its racing machines of the 1970s. Mechanically it shared the same specification as the standard YZ250F, but the retro appearance has made surviving anniversary models especially recognisable today.

For current owners, the 2006 bike marks an important break from the 2001-2005 generation, so chassis and suspension parts should not automatically be assumed to interchange with earlier models. The MXOwners Parts Finder can help when identifying replacement components, while the original 80/100-21 front and 110/90-19 rear tyre sizes can be checked against modern alternatives using the MXOwners Tyre Size Guide.

Historically, the 2006 YZ250F represents the point where Yamaha's pioneering four-stroke motocross concept entered its aluminium-frame era. The engine that had helped establish the 250F class remained at its heart, but the lighter chassis, revised mass centralisation and new-generation suspension transformed the motorcycle around it. It set the basic direction Yamaha would continue refining through the remainder of the carburetted YZ250F generation.
