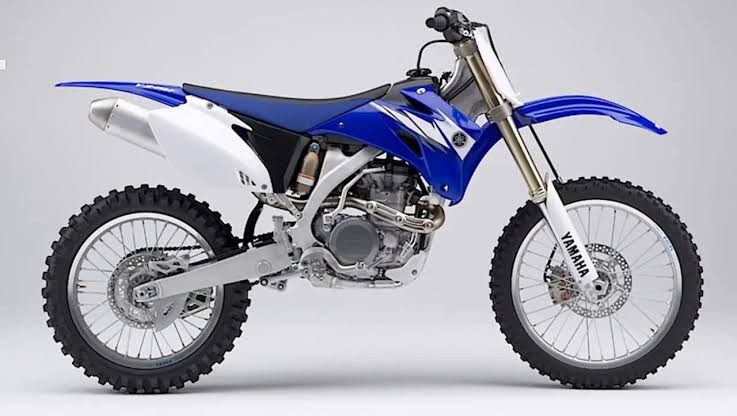

2006 Yamaha YZ450F

2006 Yamaha YZ450F: Aluminium Frame, Five Speeds and a New Generation

The 2006 Yamaha YZ450F was a major redesign and one of the most important model years in the early history of Yamaha's big four-stroke motocrosser. The previous YZ450F had already established itself as an extremely powerful race bike, but for 2006 Yamaha reworked the chassis, transmission and suspension in a major effort to make the motorcycle easier to ride quickly. The result was a machine that retained the familiar 449 cc five-valve engine concept while feeling substantially different everywhere else.

The most obvious change was the move from the earlier steel frame to a completely new aluminium semi-double-cradle chassis. Yamaha used a combination of cast, forged and extruded aluminium sections to tune rigidity rather than simply make the frame as stiff as possible. The engine was mounted within the new structure to improve mass centralisation and handling, while slimmer bodywork and a flatter riding position made it easier for the rider to move around the motorcycle.

Another major change was the transmission. Earlier YZ450F models had used a four-speed gearbox, but the 2006 machine adopted a five-speed constant-mesh transmission. This gave riders closer ratios for motocross while also providing greater flexibility across different tracks. The engine itself remained a 449 cc liquid-cooled DOHC five-valve single with a 95.0 mm bore, 63.4 mm stroke and 12.3:1 compression ratio.

Fuel continued to be supplied by a Keihin FCR-MX39 flat-slide carburettor. The FCR was well suited to the sharp response expected from a competition four-stroke, but correct jetting, accelerator-pump operation and hot-start setup are critical on ageing examples. Owners rebuilding or replacing the original unit can compare options through the MXOwners carburettor reference.

Suspension was another major part of the redesign. Yamaha fitted the 48 mm KYB Speed Sensitive System fork, a twin-chamber design that separated damping oil from the outer chamber and delivered 300 mm of front wheel travel. The rear retained Yamaha's linkage-operated Monocross system with a fully adjustable KYB shock. The suspension package became one of the defining strengths of Yamaha's motocross range, and owners servicing the fork can refer to the MXOwners fork oil reference for additional setup information.

The lubrication system remained dry-sump, with the engine and transmission sharing the same oil supply. Yamaha specified 0.95 litre for a routine oil change, 1.0 litre when replacing the oil filter and 1.2 litres total. Because the YZ450F is a high-output competition engine with a relatively small oil quantity, regular oil changes, air-filter maintenance and valve-clearance inspection are important for long-term reliability.

The 2006 model also appeared during Yamaha's 50th anniversary celebrations, and a distinctive yellow, white and black Special Edition recalled the company's classic American racing colours. Mechanically it shared the same major specification as the standard blue machine, but the anniversary colours remain instantly recognisable and have become particularly desirable among enthusiasts.

For owners today, the 2006 YZ450F represents a clear break from the earlier steel-framed generation. Frame, suspension, bodywork and transmission components should therefore be checked carefully when ordering replacements rather than assuming interchangeability with earlier models. The MXOwners Parts Finder can help identify model-specific components, while the original 80/100-21 front and 110/90-19 rear tyre sizes can be checked using the MXOwners Tyre Size Guide.

Historically, the 2006 YZ450F was the point where Yamaha's big four-stroke motocrosser matured into the basic aluminium-frame format that would define the model for years. The combination of the new chassis, five-speed gearbox and advanced KYB suspension made it substantially more manageable than the brutal early YZ450Fs while retaining the strong, carburetted five-valve engine that gave the bike its distinctive character.
