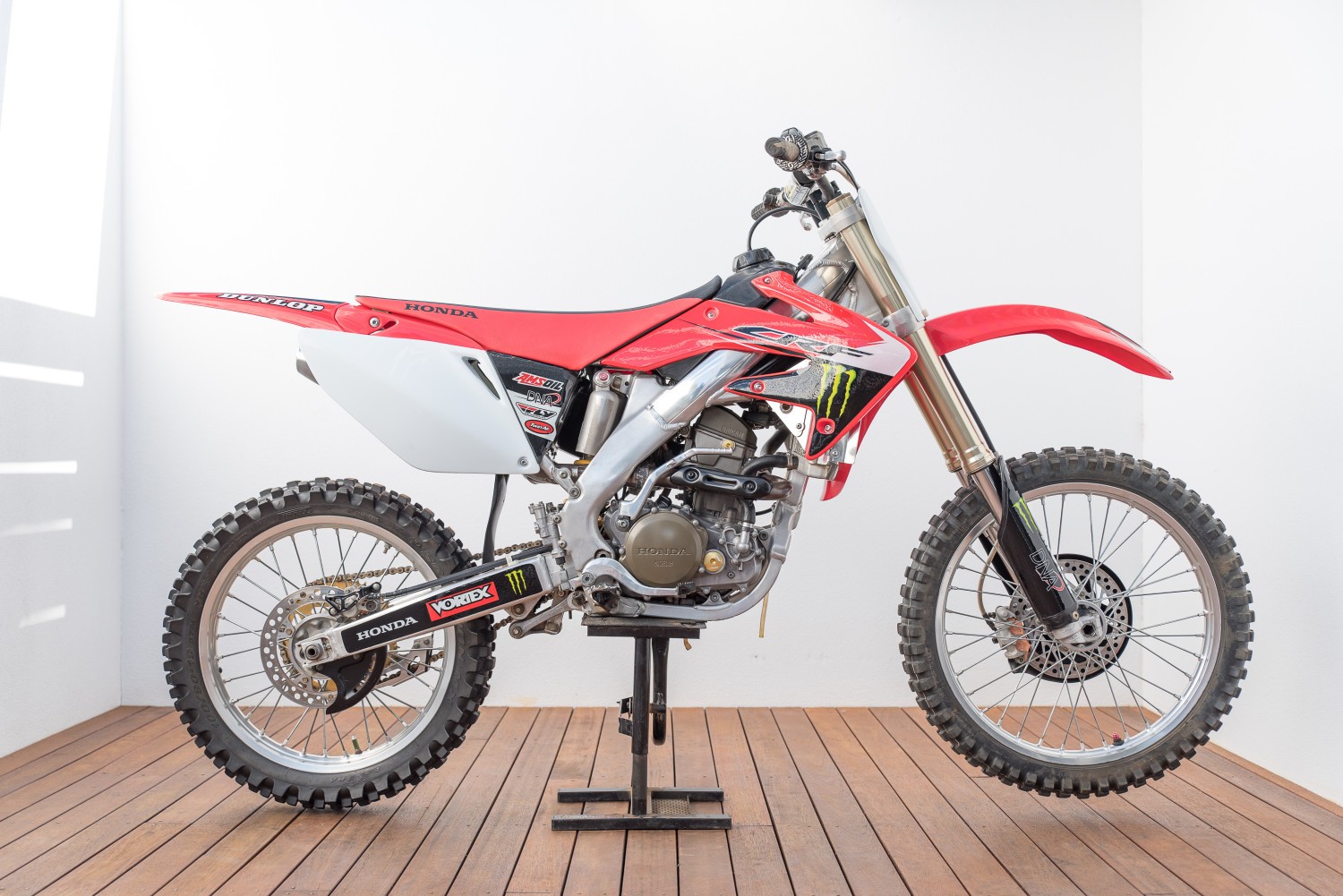

2007 Honda CR450R
General Specifications
| Model | Honda CRF450R |
| Year | 2007 |
| Category | Motocross |
| Engine Type | Liquid-cooled 4-stroke single-cylinder, Unicam OHC, 4 valves |
| Weight | Approx. 100 kg dry |
Engine
| Displacement | 449.4 cc |
| Bore x Stroke | 96.0 x 62.1 mm |
| Compression Ratio | 12.0:1 |
| Fuel System | Keihin FCR 41 mm flat-slide carburettor | Replacement Options |
| Ignition | ICM electronic ignition |
| Spark Plug | NGK IFR8H11 or Denso VK24PRZ11; optional high-speed use: NGK IFR9H11 or Denso VK27PRZ11 |
| Spark Plug Gap | 1.0-1.1 mm |
| Cooling System | Liquid cooled |
| Starting System | Kickstarter |
Transmission
| Transmission | 5-speed constant-mesh, 1-N-2-3-4-5 |
| Clutch | Wet multi-plate |
| Final Drive | Chain, D.I.D. 520DMA2, 114 links |
Dimensions
| Overall Length | 2,191 mm |
| Overall Width | 825 mm |
| Overall Height | 1,262 mm |
| Wheelbase | 1,495 mm |
| Ground Clearance | 339 mm |
| Seat Height | 955 mm |
| Fuel Capacity | 7.2 L |
Chassis
Suspension
| Front Suspension | 47 mm Showa inverted telescopic twin-chamber fork with adjustable compression and rebound damping | Fork Oil Levels |
| Front Suspension Travel | 280 mm wheel travel; 315 mm fork stroke |
| Rear Suspension | Honda Pro-Link with Showa single shock, adjustable spring preload, compression and rebound damping |
| Rear Suspension Travel | 320 mm |
| Fork Oil | Pro Honda HP Fork Oil 5W or equivalent; standard outer chamber capacity 384 cc per leg; fork damper recommended fill approximately 192 cc |
Brakes & Wheels
| Front Brake | Hydraulic single disc |
| Rear Brake | Hydraulic single disc |
| Front Wheel Size | 21 in |
| Rear Wheel Size | 19 in |
Service Data
| Fuel Type | Unleaded petrol, 91 pump octane (R+M/2) or higher |
| Premix Information | Not applicable - 4-stroke engine with separate lubrication |
| Gearbox Oil | Pro Honda GN4 4-stroke motorcycle oil or equivalent JASO MA oil; 0.59 L after draining, 0.67 L after disassembly |
| Air Filter | Washable oiled foam air cleaner |
| Service Notes | Competition motorcycle with separate engine and transmission lubrication systems. Cold valve clearance: intake 0.16 ± 0.03 mm; exhaust 0.28 ± 0.03 mm. Check engine oil, transmission oil, air filter and valve condition frequently under racing use. |
2007 Honda CRF450R: Refining the Carburetted CRF Formula
The 2007 Honda CRF450R was an evolutionary update rather than a new generation. Honda had already established the basic platform with the major 2005 redesign and the mass-centralisation changes introduced for 2006, so the 2007 model concentrated on refining engine delivery, durability and braking performance instead of replacing the chassis or engine architecture.
One of the more noticeable changes was the move from the previous 40 mm Keihin FCR carburettor to a 41 mm unit. Honda also revised the exhaust valve specification and decompression system, with the aim of smoothing the CRF450R's famously strong power delivery. The result retained the huge torque and midrange that made these carburetted CRFs popular while making the transition from low rpm into the main powerband slightly easier to control. Owners maintaining an original carburettor can compare options through the MXOwners carburettor reference.
Honda also strengthened the clutch basket for improved durability and fitted a revised front brake master cylinder intended to provide greater braking force. Suspension remained Showa at both ends, although fork damping was revised in an effort to improve compliance. Correct servicing remains particularly important with the 47 mm twin-chamber fork, and the MXOwners fork oil reference can be useful when checking fork service information.
For today's owner, the 2007 CRF450R represents the mature stage of Honda's pre-fuel-injection 450 development. It retained the aluminium twin-tube chassis, five-speed gearbox, Unicam 449.4 cc engine and straightforward carburetted fuel system that many riders still value for its mechanical simplicity. When restoring one, the MXOwners parts finder can also help identify replacement components across the bike.
The 2007 model did not rewrite the CRF450R formula, but it refined a package that was already highly competitive. Its combination of powerful carburetted four-stroke performance, predictable chassis behaviour and relatively simple mechanical layout has helped make this generation a popular choice for riders who still prefer the feel and serviceability of the pre-EFI era.
