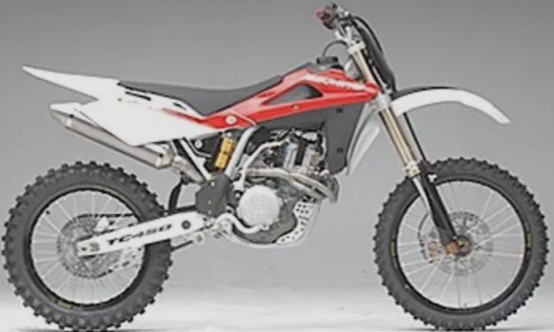

2007 Husqvarna TC450
General Specifications
| Model | Husqvarna TC450 |
| Year | 2007 |
| Category | Motocross |
| Engine Type | Single-cylinder, liquid-cooled, 4-stroke, DOHC, 4-valve |
| Weight | 110 kg kerb weight without fuel |
Engine
| Displacement | 449 cc |
| Bore x Stroke | 97.0 x 60.8 mm |
| Compression Ratio | 12.9:1 |
| Fuel System | Keihin FCR-MX 41 mm flat-slide carburettor with accelerator pump and TPS | Replacement Options |
| Ignition | Electronic CDI with digitally controlled variable advance |
| Spark Plug | NGK CR8EB |
| Spark Plug Gap | 0.7 mm |
| Cooling System | Liquid cooled with water-pump circulation and twin radiators |
| Starting System | Kick starter with automatic decompressor |
Transmission
| Transmission | 5-speed constant-mesh manual |
| Clutch | Wet multi-plate, hydraulically operated |
| Final Drive | 520 chain; 14-tooth front / 50-tooth rear sprockets |
Dimensions
| Overall Length | 2172 mm |
| Overall Width | 820 mm |
| Overall Height | 1280 mm |
| Wheelbase | 1472 mm |
| Ground Clearance | 340 mm |
| Seat Height | 980 mm |
| Fuel Capacity | 9.2 L including 1.8 L reserve |
Chassis
| Frame | High-strength steel single-beam frame with light-alloy rear subframe |
| Front Tyre | 80/100-21 Pirelli MT32A | Tyre Size Guide |
| Rear Tyre | 110/90-19 Pirelli MT32 | Tyre Size Guide |
Suspension
| Front Suspension | 50 mm Marzocchi upside-down twin-chamber hydraulic fork, adjustable for compression and rebound damping | Fork Oil Levels |
| Front Suspension Travel | 300 mm |
| Rear Suspension | Öhlins hydraulic monoshock with progressive linkage, adjustable for spring preload, compression and rebound damping |
| Rear Suspension Travel | 325 mm |
| Fork Oil | SAE 5 fork oil; approximately 350 cm³ per fork leg |
Brakes & Wheels
| Front Brake | 260 mm Brembo hydraulic single disc with 2-piston floating caliper |
| Rear Brake | 240 mm Brembo hydraulic single disc with integrated-reservoir master cylinder |
| Front Wheel Size | 1.60 x 21 in light-alloy rim |
| Rear Wheel Size | 2.15 x 19 in light-alloy rim |
Service Data
| Fuel Type | Premium unleaded petrol, minimum 98 RON |
| Premix Information | Not applicable - 4-stroke engine |
| Gearbox Oil | Engine, gearbox and primary drive share AGIP Racing 4T SAE 10W-60; 1.7 L with oil and filter replacement, 1.5 L for oil-only replacement |
| Air Filter | Oiled foam air filter |
| Service Notes | Competition motocross model. Change engine oil and filter frequently, service the air filter after dusty riding and regularly inspect valve clearances, cam-chain condition, clutch, cooling system, drive chain, wheel bearings, steering-head bearings and suspension linkage. The 2007 model received a revised clutch basket, strengthened kick-start shaft, revised suspension settings and a new rear brake master cylinder. |
2007 Husqvarna TC450 – Detail Refinement of the Italian 450 Motocrosser
The 2007 Husqvarna TC450 was an evolutionary update rather than a new generation. The major mechanical changes to the Italian 450 platform had arrived during the preceding seasons, so Husqvarna concentrated on improving durability, rideability and suspension setup while retaining the established 449cc DOHC engine, five-speed motocross transmission and steel chassis.
The engine continued with its 97.0 x 60.8 mm bore and stroke, 12.9:1 compression ratio and 41 mm Keihin FCR-MX flat-slide carburettor. For 2007 Husqvarna revised the clutch basket and strengthened the kick-start shaft, changes aimed at improving durability under competition use. Owners maintaining the original induction system can compare replacement carburettor options when worn slides, jets or accelerator-pump components require attention.
Suspension remained a strong European feature of the TC450. The bike used a 50 mm Marzocchi twin-chamber inverted fork with approximately 300 mm of travel and an Öhlins linkage shock at the rear. Husqvarna revised the damping calibration for 2007 to improve control over rough motocross terrain. The MXOwners fork oil reference is useful when servicing the original Marzocchi units.
The rear braking system also received attention, with a revised Brembo master cylinder incorporating its fluid reservoir. For owners today, regular oil and filter changes, valve-clearance checks, clean air filtration and careful inspection of chassis bearings remain essential. The 2007 TC450 was not a radical redesign, but it represented a well-developed version of Husqvarna's Italian 450 motocross platform before the larger chassis and engine changes that followed in later years.
