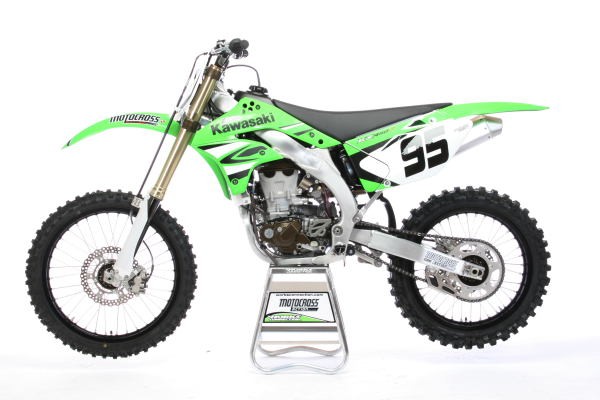

2008 Kawasaki KX450F

2008 Kawasaki KX450F

General Specifications

ModelKX450F
Year2008
CategoryMotocross
Engine Type449 cc liquid-cooled DOHC 4-stroke single-cylinder, 4 valves
Weight99.8 kg dry

Engine

Displacement449 cc
Bore x Stroke96.0 x 62.1 mm
Compression Ratio12.0:1
Fuel SystemKeihin FCR40 flat-slide carburettor | Replacement Options
IgnitionDigital AC-CDI
Spark PlugNGK CPR8EB-9
Spark Plug Gap0.8-0.9 mm
Cooling SystemLiquid cooled
Starting SystemKick start

Transmission

Transmission5-speed constant mesh, return shift
ClutchWet multi-disc manual
Final DriveChain

Dimensions

Overall Length2195 mm
Overall Width820 mm
Overall Height1275 mm
Wheelbase1495 mm
Ground Clearance340 mm
Seat Height965 mm
Fuel Capacity7.2 L

Chassis

FrameAluminium perimeter frame
Front Tyre90/100-21 | Tyre Size Guide
Rear Tyre120/80-19 | Tyre Size Guide

Suspension

Front Suspension48 mm Kayaba inverted AOS telescopic fork, adjustable compression and rebound damping | Fork Oil Levels
Front Suspension Travel315 mm
Rear SuspensionKayaba New Uni-Trak linkage shock, adjustable spring preload, compression and rebound damping
Rear Suspension Travel315 mm
Fork OilKHL15-10 (Kayaba 01) or equivalent fork oil | Fork Oil Levels

Brakes & Wheels

Front Brake250 mm single hydraulic petal disc, twin-piston caliper
Rear Brake240 mm single hydraulic petal disc, single-piston caliper
Front Wheel Size21 inch
Rear Wheel Size19 inch

Service Data

Fuel TypePremium unleaded petrol
Premix InformationNot applicable - 4-stroke engine
Gearbox OilEngine and transmission share the same oil supply; SAE 10W-30, 10W-40 or 10W-50 motorcycle oil meeting API SG/SH/SJ or SL and JASO MA; approximately 0.96 L oil change, 0.98 L with filter change, 1.2 L when completely dry
Air FilterWashable oiled foam element
Service NotesCompetition motocross model; frequent engine-oil changes, air-filter servicing, valve-clearance inspection and regular chassis and suspension maintenance required

2008 Kawasaki KX450F: Five Speeds for Kawasaki's Big Four-Stroke

The 2008 Kawasaki KX450F was an important evolution of Kawasaki's original 450 four-stroke motocrosser rather than a completely new generation. The basic 449 cc DOHC engine, aluminium perimeter-frame concept and Kayaba suspension package remained, but Kawasaki made one particularly significant change: the distinctive four-speed gearbox of the 2006 and 2007 machines was replaced by a five-speed transmission.

That extra ratio broadened the KX450F's usefulness while retaining the powerful character that had defined the first two model years. The engine continued to breathe through a Keihin FCR40 flat-slide carburettor, placing the 2008 machine firmly among the last generation of carburetted premier-class Kawasaki four-strokes. Owners restoring the original fuel system can use the MXOwners carburettor reference and replacement information when researching worn components or replacement options.

The chassis continued with Kawasaki's aluminium perimeter-frame design and 48 mm Kayaba AOS inverted forks, backed by a New Uni-Trak linkage rear shock. Both ends offered approximately 315 mm of travel and extensive adjustment for motocross use. With these bikes now well into their second decade, correct suspension servicing can transform how a tired example feels, and the MXOwners fork oil reference is useful when preparing for a fork rebuild.

The KX450F had already become an important part of Kawasaki's factory racing program by this stage, with James Stewart closely associated with the big green four-stroke during its early years. The model helped carry Kawasaki through the industry's rapid transition away from 250 two-strokes toward 450 four-strokes at the highest levels of motocross and Supercross.

For owners, the five-speed transmission is an easy way to distinguish the 2008 mechanically from the earlier 2006 and 2007 KX450F. Kawasaki continued to develop the model rapidly, so components should always be checked against the exact year before ordering. The MXOwners parts finder can help when researching replacement parts, while the motocross tyre size guide is useful for checking the standard 90/100-21 front and 120/80-19 rear combination.

The 2008 KX450F therefore sits at an interesting point in the model's history. It retained the raw carburetted, kick-start character of Kawasaki's original KX450F while introducing the five-speed gearbox that made the machine more versatile. Fuel injection and further major development were just around the corner, making the 2008 model one of the final examples of Kawasaki's early carburetted 450 motocross era.
