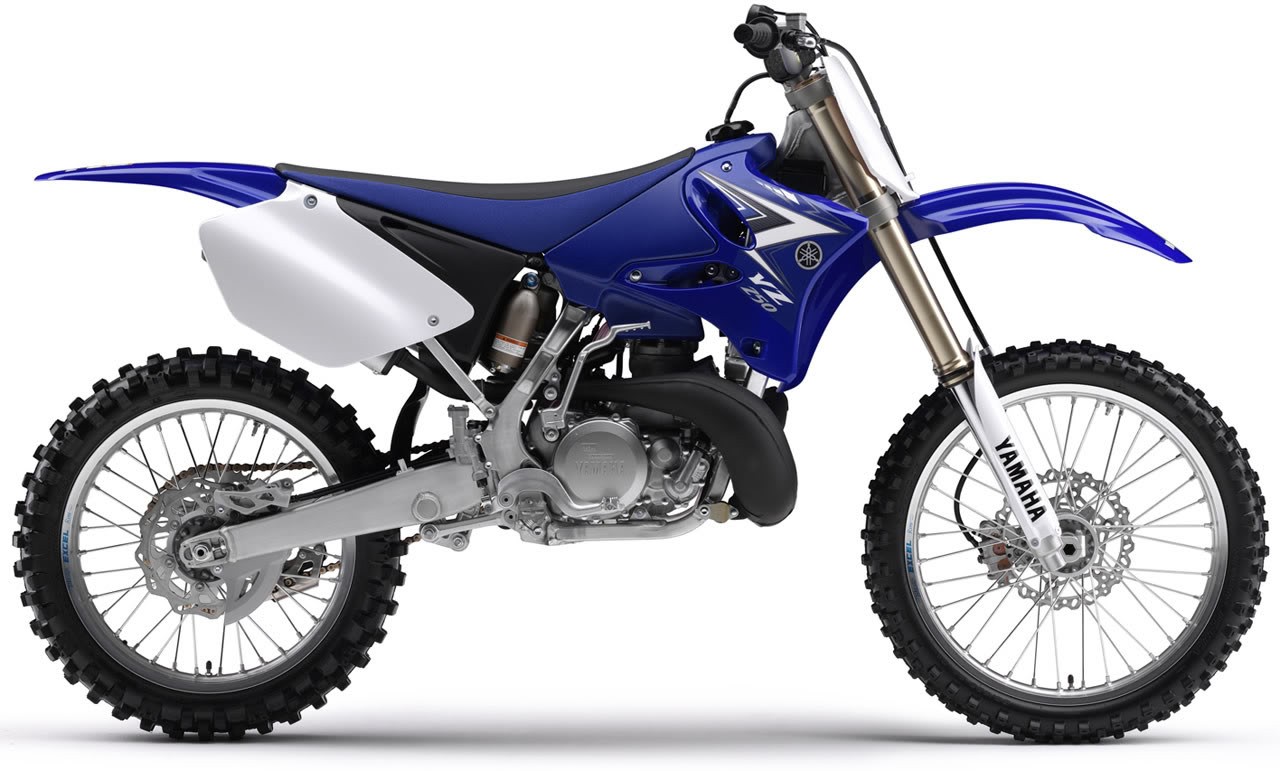

2008 Yamaha YZ250
General Specifications
| Model | Yamaha YZ250 |
| Year | 2008 |
| Category | Motocross |
| Engine Type | Liquid-cooled 2-stroke single-cylinder, reed-valve induction with Yamaha Power Valve System (YPVS) |
| Weight | Approx. 96 kg dry |
Engine
| Displacement | 249 cc |
| Bore x Stroke | 66.4 x 72.0 mm |
| Compression Ratio | 8.9-10.6:1 |
| Fuel System | Keihin PWK38S 38 mm carburettor with reed-valve induction | Replacement Options |
| Ignition | CDI magneto |
| Spark Plug | NGK BR8EG |
| Spark Plug Gap | 0.5-0.6 mm |
| Cooling System | Liquid cooled |
| Starting System | Kickstarter |
Transmission
| Transmission | 5-speed constant-mesh |
| Clutch | Wet multi-plate, coil spring |
| Final Drive | Chain, 14T/50T final gearing |
Dimensions
| Overall Length | 2,177 mm |
| Overall Width | 828 mm |
| Overall Height | 1,306 mm |
| Wheelbase | 1,481 mm |
| Ground Clearance | 381 mm |
| Seat Height | 993 mm |
| Fuel Capacity | 8.0 L |
Chassis
Suspension
| Front Suspension | 48 mm KYB Speed Sensitive System (SSS) inverted twin-chamber fork with adjustable compression and rebound damping | Fork Oil Levels |
| Front Suspension Travel | 300 mm |
| Rear Suspension | KYB link-type Monocross single shock with adjustable spring preload, rebound, low-speed compression and high-speed compression damping |
| Rear Suspension Travel | 315 mm |
| Fork Oil | Yamaha Suspension Oil S1; inner damper approximately 205 cc; outer-chamber quantity varies with setup and spring choice |
Brakes & Wheels
| Front Brake | Hydraulic single wave disc with compact twin-piston caliper |
| Rear Brake | Hydraulic single wave disc |
| Front Wheel Size | 21 x 1.60 in |
| Rear Wheel Size | 19 x 2.15 in |
Service Data
| Fuel Type | Premium unleaded petrol, 95 RON or higher |
| Premix Information | 30:1 petrol-to-2-stroke oil using Yamalube 2-R or equivalent high-quality racing 2-stroke oil | Premix Calculator |
| Gearbox Oil | Yamalube 4 SAE 10W-30 or equivalent motorcycle oil; approximately 0.75 L periodic oil change, 0.80 L total capacity |
| Air Filter | Washable oiled foam air-filter element |
| Service Notes | Competition 2-stroke with premix engine lubrication and separate transmission oil. Maintain the specified premix ratio, clean and oil the air filter frequently, inspect the spark plug and piston regularly, and service the YPVS power-valve system as required. |
2008 Yamaha YZ250: Lighter Details, Same Proven Two-Stroke Formula
The 2008 Yamaha YZ250 was a minor-update model rather than a new generation. Yamaha retained the aluminium frame, 249 cc reed-valve two-stroke engine, 38 mm Keihin PWK carburettor and highly regarded KYB Speed Sensitive System suspension that had already established the basic character of the modern YZ250.
Most of the 2008 changes focused on reducing unsprung weight and sharpening chassis response. Yamaha fitted lighter fork lugs, revised fork guards, wave-style brake rotors and a smaller front brake caliper. The fork stanchions were also shortened and internal settings revised, while the rear shock received matching setup changes. Owners servicing the front suspension can use the MXOwners fork oil reference when checking oil and setup information.
The engine remained largely unchanged and continued to deliver the broad, responsive powerband that had become one of the YZ250's biggest strengths. Fueling still came from the 38 mm Keihin PWK carburettor, and owners working on ageing examples can use the MXOwners carburettor reference when looking at replacement or repair options.
Yamaha continued to specify 30:1 premix using Yamalube 2-R or an equivalent racing two-stroke oil, while the five-speed gearbox used its own separate oil supply. The MXOwners premix calculator can help when mixing fuel accurately.
Historically, the 2008 YZ250 is a good example of Yamaha refining rather than reinventing a successful package. While rival Japanese manufacturers were steadily withdrawing from the 250 two-stroke class, Yamaha kept improving the details of the YZ250 and maintained a model line that would continue long after many expected it to disappear.
