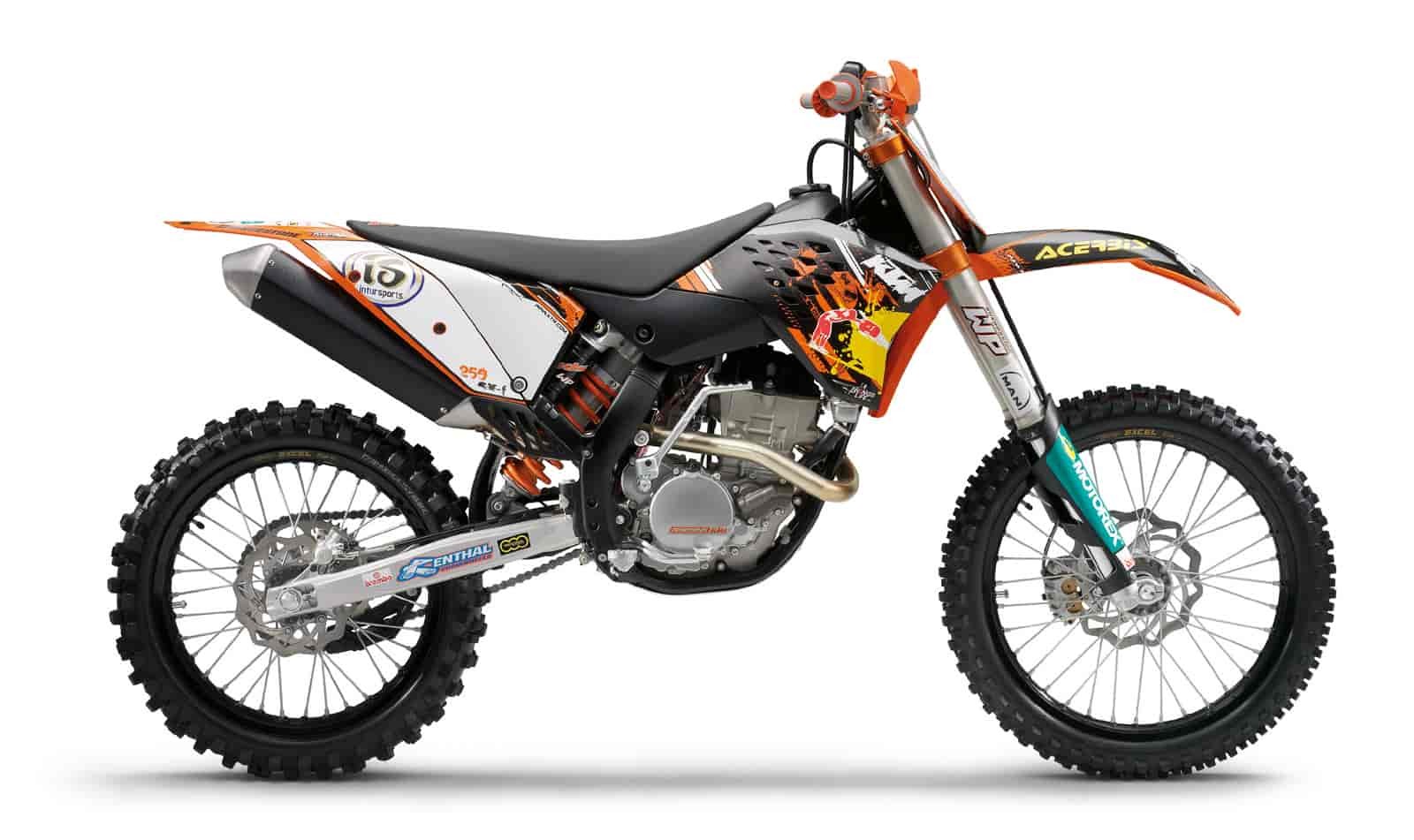

2009 KTM 250SX-F

2009 KTM 250 SX-F: A Lighter Valve Train Transforms the Power Delivery

The 2009 KTM 250 SX-F was not a completely new generation, but it received enough important engine and suspension development to make it noticeably different from the 2008 model. KTM retained the same basic frame, swingarm, six-speed transmission and 248.6 cc DOHC engine architecture, concentrating instead on reducing internal engine mass and improving the way the bike delivered its power.

The biggest change was in the cylinder head. KTM introduced lighter titanium valves, new beehive valve springs, slimmer valve guides, thinner finger followers, a smaller cam chain and a lighter camshaft assembly. Reducing the mass of the valve train allowed the engine to respond to throttle changes more quickly and helped move useful power lower into the rev range. The previous model had been criticised for making much of its performance very high in the rpm range, while the 2009 engine felt noticeably livelier from low and mid rpm without losing its strong top end.

Fuel delivery remained through a Keihin FCR-MX 39 mm accelerator-pump carburettor, although jetting and accelerator-pump setup remained important to clean throttle response. Owners maintaining these carburetted SX-F models can compare worn or replacement components using the MXOwners carburettor reference.

WP suspension also received useful revisions. The 48 mm closed-cartridge fork gained lighter, thinner tubes intended to improve controlled flex, while the PDS rear shock received revised piston ports, a larger oil passage and altered secondary-piston engagement. Front travel remained 300 mm and rear travel 335 mm. The MXOwners fork oil reference is useful when servicing or returning modified forks to a known baseline.

Historically, the 2009 250 SX-F represents KTM refining rather than replacing its early four-stroke motocross platform. The changes were largely hidden inside the engine and suspension, but they addressed weaknesses of the previous model directly. With a lighter-feeling engine, strong hydraulic clutch, six-speed gearbox and increasingly sorted chassis, the 2009 machine showed how quickly KTM was developing into a serious force in the 250 four-stroke class.
