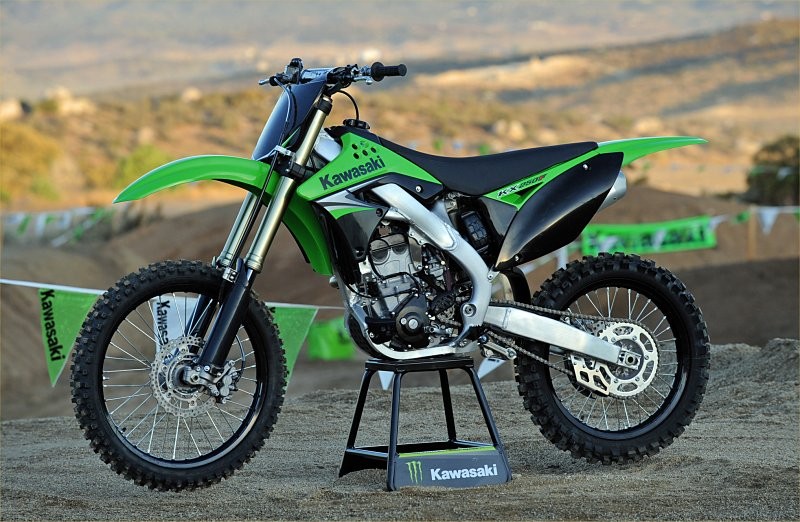

2009 Kawasaki KX250F

2009 Kawasaki KX250F – A Major Evolution of Kawasaki’s 250 Four-Stroke

The 2009 Kawasaki KX250F represented a significant update rather than a simple annual refinement. Kawasaki revised the engine, aluminium frame, suspension and rider ergonomics in an effort to make the quarter-litre four-stroke lighter-feeling, stronger through the powerband and easier to control on increasingly rough modern motocross tracks.

The basic engine dimensions remained familiar at 77.0 x 53.6 mm, giving 249 cc, but Kawasaki made numerous internal changes. The four-valve DOHC cylinder head, intake and exhaust systems were revised to improve breathing and increase usable power. The engine retained a high compression ratio and was designed to operate at the high rpm typical of competitive 250 four-strokes, while changes to the crankshaft and rotating components were aimed at improving response.

Fuel delivery was still handled by a Keihin FCR 37 mm flat-slide carburettor. This placed the 2009 KX250F firmly in the final generation of carburetted Kawasaki 250 four-strokes, before fuel injection eventually became standard. Jetting, accelerator-pump timing and fuel-screw adjustment therefore remain important tuning considerations for owners today. When an original unit is worn or incomplete, owners can compare replacement carburettor options.

The aluminium perimeter frame also received substantial attention. Kawasaki altered frame rigidity, engine mounting and chassis balance to make the bike feel narrower and more responsive while retaining the straight-line stability for which the KX range was known. Revised bodywork and rider contact points allowed greater freedom of movement, particularly when transitioning from sitting to standing or moving forward entering corners.

The Showa suspension package was updated to match the revised chassis. A 47 mm twin-chamber cartridge fork provided approximately 315 mm of travel, while Kawasaki’s Uni-Trak rear system used a Showa shock with roughly 310 mm of rear-wheel movement. Both ends offered extensive damping adjustment for competition use. Correct oil level, bleeding and internal condition are critical to the performance of these forks, making the MXOwners fork oil reference useful when servicing the front end.

Braking continued to use petal-style hydraulic discs, with a 250 mm front rotor and 240 mm rear. Standard motocross wheel sizes remained 21 inches at the front and 19 inches at the rear, and owners replacing tyres can check suitable fitments with the MXOwners tyre size guide.

Maintenance remained intensive compared with a trail motorcycle. The KX250F was designed as a competition machine, so frequent engine-oil changes, clean air filtration and regular valve-clearance inspections were essential. The engine and gearbox shared the same oil supply, making oil condition especially important for both engine and transmission durability.

Historically, the 2009 KX250F sits at an interesting point in Kawasaki motocross development. The aluminium-frame four-stroke formula was already well established, but electronic fuel injection had not yet replaced the carburettor on the 250. The 2009 model therefore combines a substantially modernised chassis and engine with the traditional FCR carburettor technology that had defined the first generation of high-performance 250 four-stroke motocross bikes. Owners restoring one today can use the MXOwners Parts Finder when checking replacement components.
