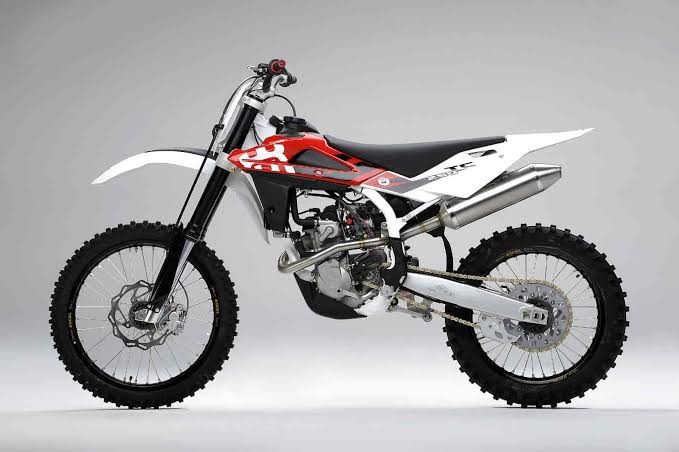

2009 Husqvarna TC250

2009 Husqvarna TC250 – The Revolutionary X-Light Generation Arrives

The 2009 Husqvarna TC250 was a genuine new-generation motorcycle and one of the most important 250 four-strokes produced during Husqvarna's Italian era. Almost everything that defined the previous TC250 was reconsidered. Husqvarna introduced the dramatically smaller X-Light engine, a completely redesigned frame, new bodywork and revised suspension. The goal was simple but ambitious: remove the heavy, old-school character associated with earlier Husqvarna four-strokes and build a 250F that could compete directly with the lightest Japanese motocross machines.

The centrepiece was the new 249.5cc engine. Bore increased to 79.0 mm while stroke was shortened to just 50.9 mm, creating an extremely oversquare layout designed for high-rpm performance. Four radial titanium valves were operated by twin overhead camshafts using a combined chain-and-gear drive. The entire engine weighed only about 22 kg and was approximately 13 percent smaller in length, width and height than the previous TC250 unit. Husqvarna also reduced the distance between the primary-drive shafts by around 16 percent and the gearbox shaft spacing by about 7 percent, producing an exceptionally compact package.

Despite speculation that the new machine might use fuel injection, the 2009 TC250 retained a Keihin FCR-MX 39 mm flat-slide carburettor. For owners today, correct accelerator-pump operation, jetting and slide condition remain important to starting and throttle response. The MXOwners carburettor replacement options can help when original components are worn or missing.

The five-speed gearbox and wet multi-plate hydraulic clutch were packaged tightly around the new engine. Lubrication used a compact dry-sump arrangement with a rotor-type oil pump, and the engine and gearbox required only around 0.9 litres of lubricant. Starting remained by kickstarter to minimise weight. This combination helped Husqvarna claim a dry motorcycle weight of approximately 92 kg, an enormous reduction compared with earlier TC250 generations.

The chassis was equally new. Husqvarna redesigned the steel frame geometry around the much smaller engine, fitted a new light-alloy rear subframe and completely reshaped the bodywork. The narrower tank, seat and side panels gave the rider more freedom of movement and helped centralise mass. The difference was substantial enough that contemporary testers described the X-Light TC250 as feeling like an entirely different motorcycle rather than an updated Husqvarna.

Front suspension used 50 mm Marzocchi sealed-cartridge inverted forks with approximately 300 mm of travel. A revised Sachs shock operated through a new Progressive Soft Damp linkage with about 296 mm of rear-wheel travel. Both ends offered competition-level damping adjustment. Owners servicing the original front suspension can use the MXOwners fork oil reference when checking fork setup and oil information.

Brembo brakes used a 260 mm wave-type front disc and 240 mm rear disc, while the TC retained the normal 21-inch front and 19-inch rear motocross wheel arrangement. Original tyre sizes were 80/100-21 and 100/90-19, which can be compared with modern replacements using the MXOwners tyre size guide.

For owners restoring a 2009 TC250, model identification is especially important because the X-Light engine is fundamentally different from the 2008 motor despite sharing the TC250 name. Engine internals, cylinder head, frame, intake system and many chassis components belong to the new generation and should not be assumed interchangeable with earlier bikes. The MXOwners Parts Finder can help when identifying replacement components.

Historically, the 2009 TC250 marked one of Husqvarna's boldest engineering changes of the decade. Instead of continuing to refine its existing 250F, the company started again with a drastically smaller engine and chassis. The resulting X-Light TC250 established the architecture that Husqvarna would continue developing into the following seasons and finally gave the marque a lightweight, high-revving 250 four-stroke that looked and behaved like a genuinely modern motocross machine.
