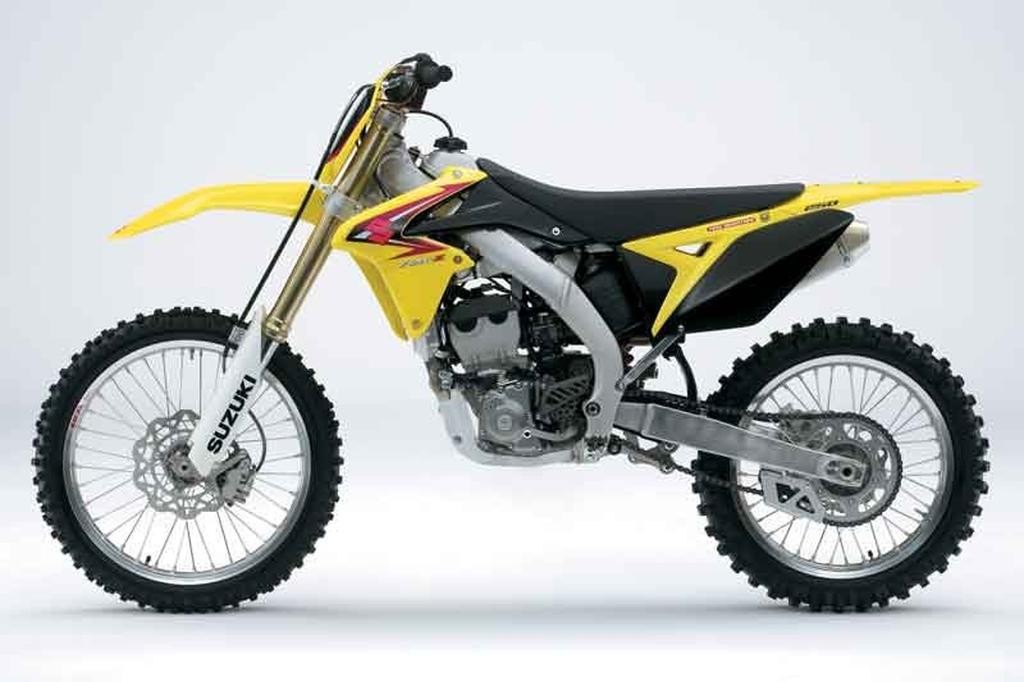

2010 Suzuki RM-Z250

2010 Suzuki RM-Z250 – Fuel Injection Arrives in a Major Redesign

The 2010 Suzuki RM-Z250 was a major update and one of the most important model years in the history of Suzuki's quarter-litre four-stroke motocrosser. The biggest change was the move from the Keihin FCR carburettor used on the 2009 model to electronic fuel injection, but Suzuki also revised the engine, chassis and suspension to create a substantially different motorcycle.

Fuel injection brought the RM-Z250 into line with the direction modern motocross development was taking. The new system used a 43 mm throttle body and eliminated the traditional main jet, pilot jet and accelerator-pump tuning required by the earlier carburetted bikes. Fuel delivery could now be controlled electronically according to engine operating conditions, giving more consistent throttle response as temperature and altitude changed.

Suzuki retained the familiar 249 cc displacement and 77.0 x 53.6 mm bore and stroke, but the engine received extensive internal development. The DOHC cylinder head, cam timing, intake and exhaust systems were revised to improve response and extend useful power. The 13.4:1 compression ratio reflected the highly tuned nature of the competition engine, while titanium valves helped keep the valvetrain light enough for the high engine speeds demanded in 250 four-stroke motocross.

The chassis was also revised rather than simply carrying over unchanged. Suzuki altered the aluminium twin-spar frame and overall rigidity balance in an effort to retain the RM-Z250's established strength in corners while improving stability and rider feedback. The RM-Z family had already earned a reputation for quick steering, and the 2010 development continued to focus heavily on making the bike easy to place accurately in turns.

Showa suspension remained at both ends. The 47 mm inverted twin-chamber fork offered adjustable compression and rebound damping and approximately 310 mm of travel. The link-type Showa rear shock provided a similar amount of rear-wheel travel with adjustable preload, rebound and high- and low-speed compression damping. Because these are competition components, oil condition and correct internal setup have a major effect on performance, making the MXOwners fork oil reference useful when servicing the front end.

The 2010 model also represented a change in what owners needed to understand when maintaining an RM-Z250. Carburettor jetting disappeared from the normal tuning routine, but fuel-injection diagnosis, electrical connections and sensor condition became more important. Traditional race-bike maintenance remained essential: clean air filtration, fresh engine oil, correct valve clearance and regular inspection of the cooling system, chain and chassis bearings.

Tyre sizing remained conventional motocross practice with a 21-inch front and 19-inch rear wheel. Owners replacing tyres can compare sizing information using the MXOwners tyre size guide, while those rebuilding older bikes can use the MXOwners Parts Finder when checking replacement components.

Historically, the 2010 RM-Z250 marks the point where Suzuki's 250 four-stroke entered the modern fuel-injected era. The previous carburetted generation had been steadily refined, but 2010 brought a much larger technical step. For current owners and restorers, it is an important model because many of the design ideas introduced here formed the basis of Suzuki's RM-Z250 development for years afterward.
