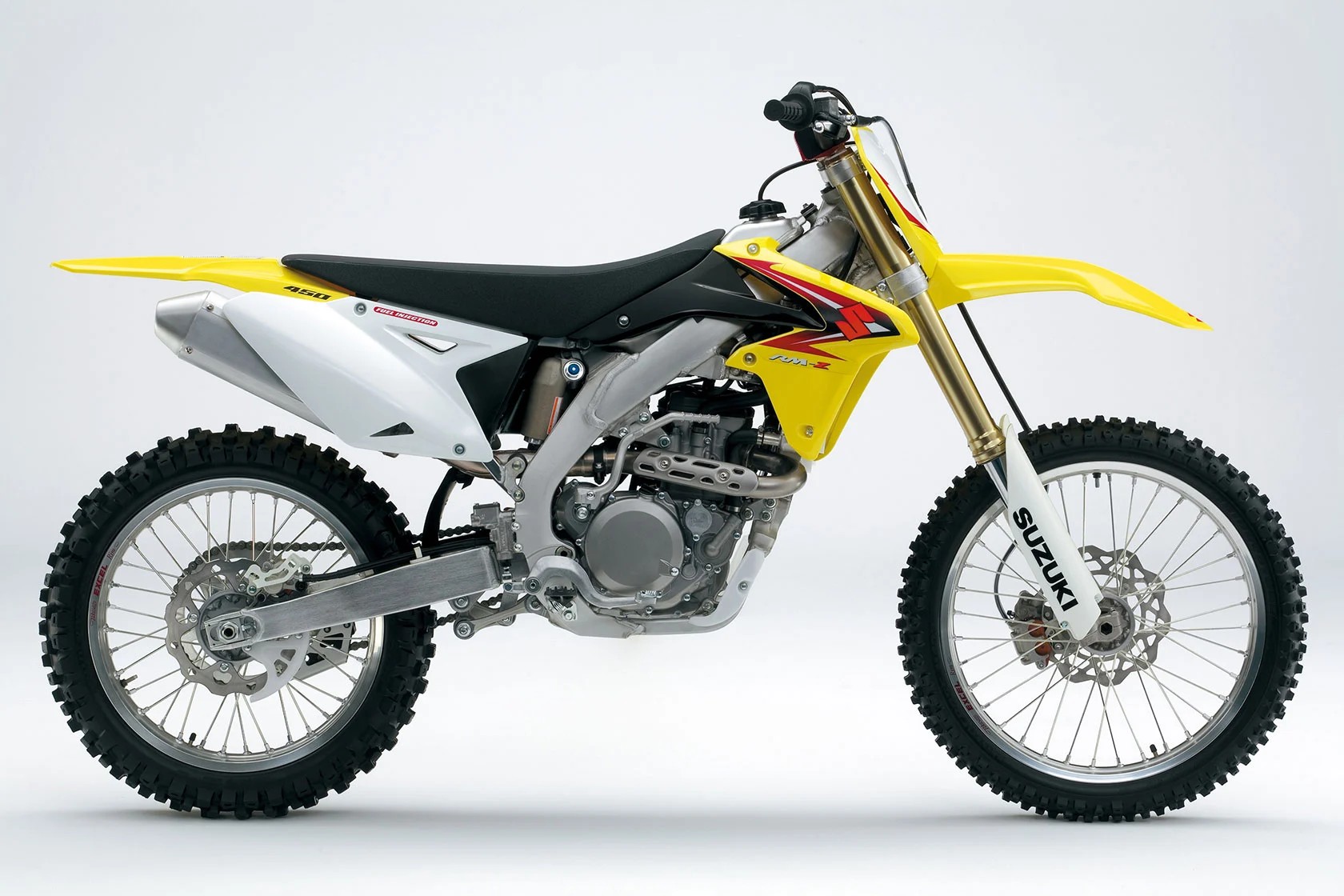

2010 Suzuki RM-Z450
General Specifications
| Model | Suzuki RM-Z450 |
| Year | 2010 |
| Category | Motocross |
| Engine Type | 449 cc single-cylinder, four-stroke, DOHC, 4-valve, liquid-cooled |
| Weight | Approximately 113 kg curb mass |
Engine
| Displacement | 449 cc |
| Bore x Stroke | 96.0 x 62.1 mm |
| Compression Ratio | 12.2:1 |
| Fuel System | Electronic fuel injection, 44 mm throttle body, battery-less system |
| Ignition | Electronic CDI |
| Spark Plug | NGK DIMR8A10 |
| Spark Plug Gap | 0.9-1.0 mm |
| Cooling System | Liquid-cooled |
| Starting System | Primary kick starter with automatic decompression |
Transmission
| Transmission | 5-speed constant-mesh |
| Clutch | Wet multi-plate |
| Final Drive | Chain |
Dimensions
| Overall Length | Approximately 2,190 mm |
| Overall Width | 830 mm |
| Overall Height | Approximately 1,270 mm |
| Wheelbase | Approximately 1,495 mm |
| Ground Clearance | Approximately 325 mm |
| Seat Height | 955 mm |
| Fuel Capacity | 6.2 L |
Chassis
Suspension
| Front Suspension | 47 mm Showa inverted twin-chamber telescopic fork, adjustable compression and rebound damping | Fork Oil Levels |
| Front Suspension Travel | 310 mm |
| Rear Suspension | Showa link-type monoshock, adjustable spring preload, high/low-speed compression and rebound damping |
| Rear Suspension Travel | 310 mm |
| Fork Oil | Suzuki Fork Oil SS-05 or equivalent; Showa twin-chamber fork |
Brakes & Wheels
| Front Brake | Single hydraulic disc, twin-piston caliper |
| Rear Brake | Single hydraulic disc |
| Front Wheel Size | 21 in |
| Rear Wheel Size | 19 in |
Service Data
| Fuel Type | Premium unleaded petrol, minimum 95 RON |
| Premix Information | Not applicable - four-stroke engine with separate engine lubrication |
| Gearbox Oil | Engine and transmission share the same oil; SAE 10W-40 motorcycle oil meeting API SF/SG or SH/SJ and JASO MA specification; approximately 1.05 L oil change / 1.10 L with filter / 1.20 L overhaul |
| Air Filter | Washable polyurethane foam element, oiled with foam air-filter oil |
| Service Notes | Competition four-stroke motocross engine. Check engine oil frequently and inspect valve clearance, air filter, coolant, drive chain, brakes and controls at competition-service intervals. Spark plug torque approximately 11 N·m. |
2010 Suzuki RM-Z450 – A Major Chassis and Engine Revision
The 2010 Suzuki RM-Z450 represented a significant development of Suzuki's fuel-injected 450 motocross platform rather than a simple graphics update. Electronic fuel injection had already arrived on the RM-Z450 in 2008, but for 2010 Suzuki concentrated on refining the engine, frame geometry and suspension to produce a bike that was easier to control and more competitive across a wider range of track conditions.
The 449 cc DOHC engine retained its 96.0 x 62.1 mm bore and stroke and four-valve cylinder head, but Suzuki revised a number of internal and electronic settings. Fuel-injection mapping was updated to improve throttle response and power delivery, while changes to the intake and exhaust systems were aimed at producing stronger, more usable power through the middle of the rev range. The battery-less injection system continued to eliminate the carburettor jets and accelerator-pump adjustments found on earlier four-stroke motocross bikes.
One of the most important areas of development was the chassis. Suzuki revised the aluminium twin-spar frame to alter rigidity and improve the balance between sharp cornering and stability. The RM-Z family already had a strong reputation for turning quickly, and the 2010 changes were intended to preserve that character while giving the rider better control over rough ground and at higher speeds.
Showa suspension remained at both ends, with a 47 mm inverted twin-chamber fork and a link-type rear shock providing approximately 310 mm of travel. Both ends offered extensive adjustment for competition use. Correct fork oil, bleeding and damping setup have a major influence on how these bikes handle, making the MXOwners fork oil reference useful when carrying out suspension servicing.
The 2010 RM-Z450 continued to use a traditional 21-inch front and 19-inch rear motocross wheel combination. Owners replacing tyres can compare standard sizing using the MXOwners tyre size guide, while older bikes undergoing rebuilds can benefit from checking replacement components through the MXOwners Parts Finder.
Maintenance remained critical on the highly tuned 450 four-stroke. Frequent engine-oil changes, clean air filtration and regular valve-clearance checks were important, particularly for bikes used in racing conditions. The engine and five-speed transmission shared the same oil supply, unlike some motocross engines that separated engine and transmission lubrication.
Historically, the 2010 model sits in the early development period of modern fuel-injected motocross machines. Suzuki had already made the major step away from carburettors, and the 2010 RM-Z450 showed how quickly manufacturers began refining EFI mapping, chassis balance and suspension around the new technology. It remained unmistakably an RM-Z, with sharp steering and strong four-stroke power, but represented a meaningful evolution of the platform introduced two seasons earlier.
