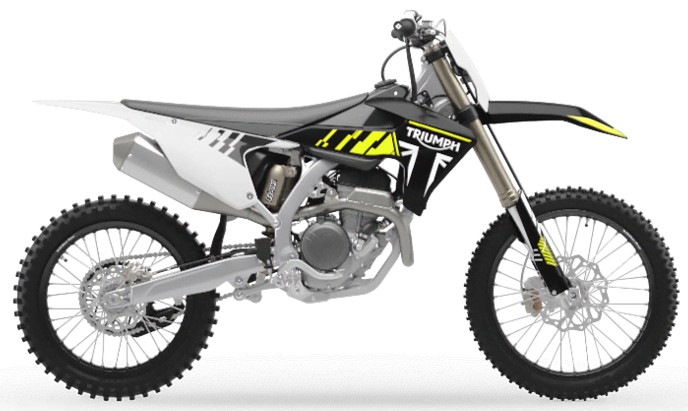

2024 Triumph TF250-X

2024 Triumph TF 250-X – Triumph Enters Motocross From a Clean Sheet

The 2024 Triumph TF 250-X was far more than another new 250 four-stroke. It marked Triumph's entry into the modern production motocross market and represented an entirely new motorcycle developed from a clean sheet. Rather than adapting an existing road or enduro platform, Triumph created a dedicated competition machine with a new engine, chassis and electronics package. Development involved Triumph's own engineering teams alongside experienced racers including Ricky Carmichael and Iván Cervantes, giving the TF 250-X an unusually high-profile introduction to one of the most competitive classes in motocross.

At its centre is a compact 249.95 cc liquid-cooled DOHC four-stroke engine with a 78 mm bore, 52.3 mm stroke and high 14.4:1 compression ratio. Electronic fuel injection uses a Dell'Orto throttle body managed by Athena electronics, while a five-speed gearbox and wet multi-plate Belleville spring clutch transfer power to a 13/48 final drive. Electric starting is standard, reflecting the direction taken by contemporary competition four-strokes.

Triumph put considerable emphasis on reducing mass and keeping the motorcycle narrow. The aluminium spine and double-cradle frame was designed specifically for the TF rather than copied from another Triumph platform. At approximately 104 kg wet, the first TF 250-X was intended to compete directly on power-to-weight and handling with established Japanese and European 250 four-strokes. Owners comparing the Triumph with other machines from the period can use the MXOwners motocross bike specifications to compare the different chassis and engine approaches.

The suspension package showed that Triumph was aiming at serious competition from the beginning. A 48 mm KYB coil-spring fork provides 310 mm of travel with adjustable compression and rebound damping. At the rear, a KYB coil-spring shock offers high- and low-speed compression adjustment, rebound adjustment and 305 mm of rear wheel travel. These are full competition components rather than entry-level equipment, and owners working on suspension setup can also refer to the MXOwners fork oil reference when researching service information.

Brembo brakes were another premium choice, with a twin-piston front caliper operating a 260 mm disc and a single-piston rear caliper working with a 220 mm disc. Full-size motocross wheels measure 21 x 1.6 inches at the front and 19 x 1.85 inches at the rear, originally matched to 80/100-21 and 100/90-19 tyres. The MXOwners motocross tyre size guide is useful when comparing replacement sizes and tyre profiles.

The importance of the 2024 TF 250-X goes beyond its specifications. Triumph had been absent from top-level purpose-built motocross machinery for decades, yet it did not return cautiously with a rebadged or lightly modified existing motorcycle. The company entered the modern MX market with its own engine, aluminium chassis, electronic management and dedicated off-road dealer and parts support strategy.

That makes the first-year TF 250-X historically significant for owners and collectors as well as racers. Later versions could refine the engine mapping, intake, exhaust, clutch and suspension settings, but the 2024 motorcycle established the basic architecture of Triumph's new motocross family. For MXOwners, it marks a clear starting point: the year Triumph became a production motocross manufacturer again and challenged the established 250 four-stroke class with a genuinely all-new machine.
